What Is Copper Clad Laminate? A Complete Guide for PCB Manufacturing

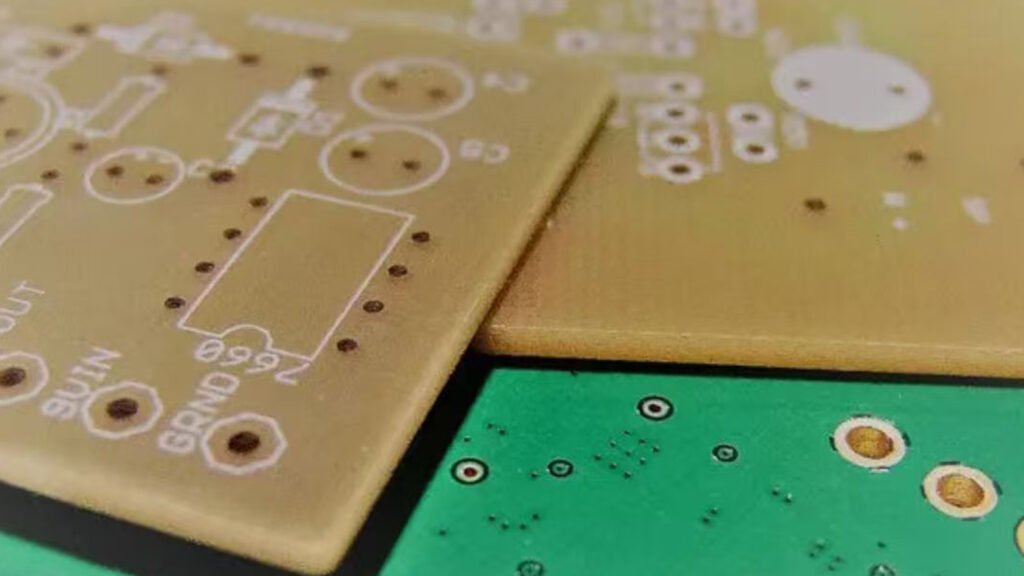

Copper Clad Laminate (CCL) is one of the most essential base materials in the electronics industry, forming the foundation of nearly all printed circuit boards (PCBs). It consists of a reinforcing substrate—such as fiberglass cloth, paper base, or composite materials—impregnated with resin and laminated with one or both sides covered in copper foil. This structure provides the electrical conductivity and mechanical strength required for modern electronic devices.
Structure and Composition
A typical copper clad laminate is made up of three main layers:
- Copper Foil: Provides excellent electrical conductivity and allows circuit patterns to be etched.
- Resin System: Commonly epoxy, phenolic, or polyester resin, acting as a bonding agent.
- Reinforcement Material: Usually fiberglass (as in FR-4), paper (FR-1), or composite materials (CEM-1, CEM-3), giving mechanical stability and insulation.
The combination of these materials determines the laminate’s thermal performance, dielectric properties, and durability.
Types of Copper Clad Laminate
Copper clad laminates are classified based on substrate material and application requirements:
- FR-4: The most widely used type, known for excellent flame resistance and mechanical strength.
- CEM-1 and CEM-3: Cost-effective alternatives with good electrical performance for consumer electronics.
- FR-1: Paper-based laminate suitable for low-end applications.
- Aluminum-Based CCL: Used in LED lighting and heat-dissipating applications due to superior thermal conductivity.
Each type is selected depending on factors like cost, performance, and environmental conditions.
Key Properties
High-quality copper clad laminates offer several important characteristics:
- Electrical Insulation: Ensures reliable circuit performance.
- Thermal Stability: Withstands high temperatures during PCB fabrication and operation.
- Mechanical Strength: Supports component mounting and long-term durability.
- Dimensional Stability: Maintains shape and size under varying conditions.
- Flame Resistance: Essential for safety compliance in electronics.
Applications in Industry
Copper clad laminates are used across a wide range of industries, including:
- Consumer electronics (smartphones, TVs, computers)
- Automotive electronics (control systems, sensors)
- Telecommunications (network equipment, base stations)
- LED lighting systems
- Industrial control and power electronics
- As electronic devices become more compact and powerful, the demand for high-performance CCL continues to grow.

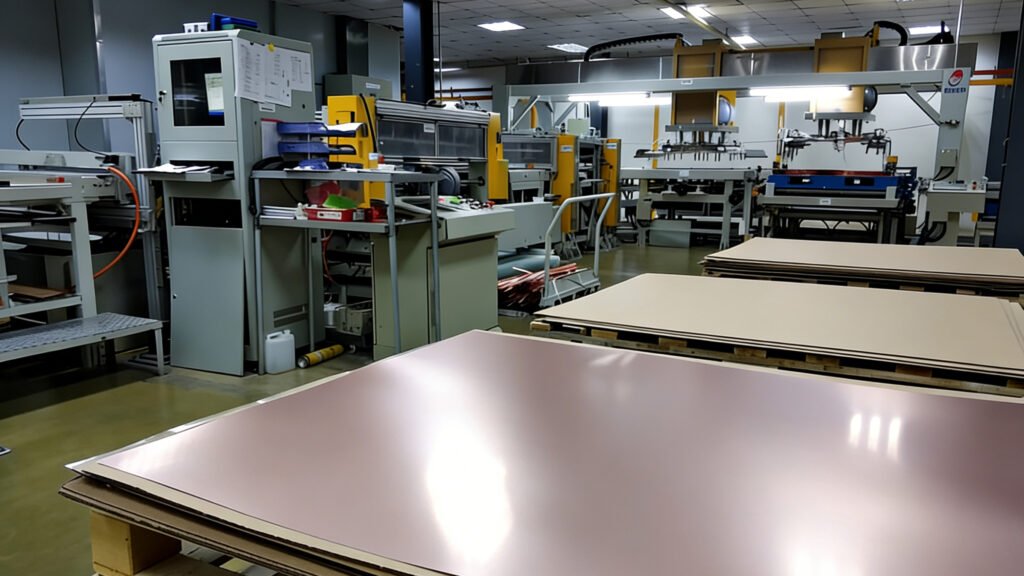

Manufacturing Process
The production of copper clad laminate involves several key steps:
- Impregnation: Reinforcement material is soaked in resin.
- Prepreg Formation: Semi-cured sheets are prepared.
- Lamination: Copper foil is bonded under heat and pressure.
- Curing: The laminate is fully hardened to achieve final properties.
- Strict quality control ensures consistency in thickness, adhesion, and electrical performance.
Why Copper Clad Laminate Matters
CCL is often called the “backbone of the PCB industry” because it directly impacts the performance and reliability of electronic circuits. Choosing the right type of laminate can improve signal integrity, thermal management, and product lifespan.
For global PCB manufacturers and buyers, sourcing high-quality copper clad laminate from reliable suppliers like Credisyn ensures stable production and competitive performance in the marketplace.
