What Is CEM-1 Laminate? A Complete Guide for PCB Applications
CEM-1 laminate is a widely used material in the printed circuit board (PCB) industry, especially for cost-sensitive electronic applications. As a composite material, CEM-1 (Composite Epoxy Material grade 1) combines the benefits of paper-based substrates and epoxy resin systems, making it an ideal solution for single-sided PCB manufacturing.
What Is CEM-1 Laminate?

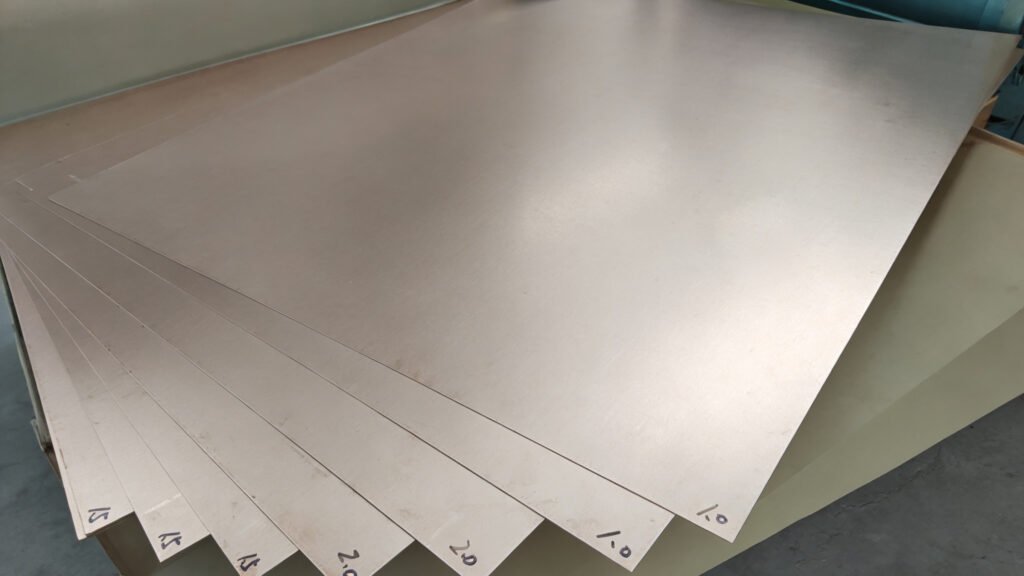

CEM-1 laminate is composed of a paper core impregnated with epoxy resin, with one layer of woven glass fabric on the surface. This structure gives it improved mechanical strength and electrical performance compared to traditional paper-based laminates such as FR-1. However, unlike FR-4, CEM-1 does not have full glass fiber reinforcement, which keeps its cost lower while maintaining acceptable reliability.

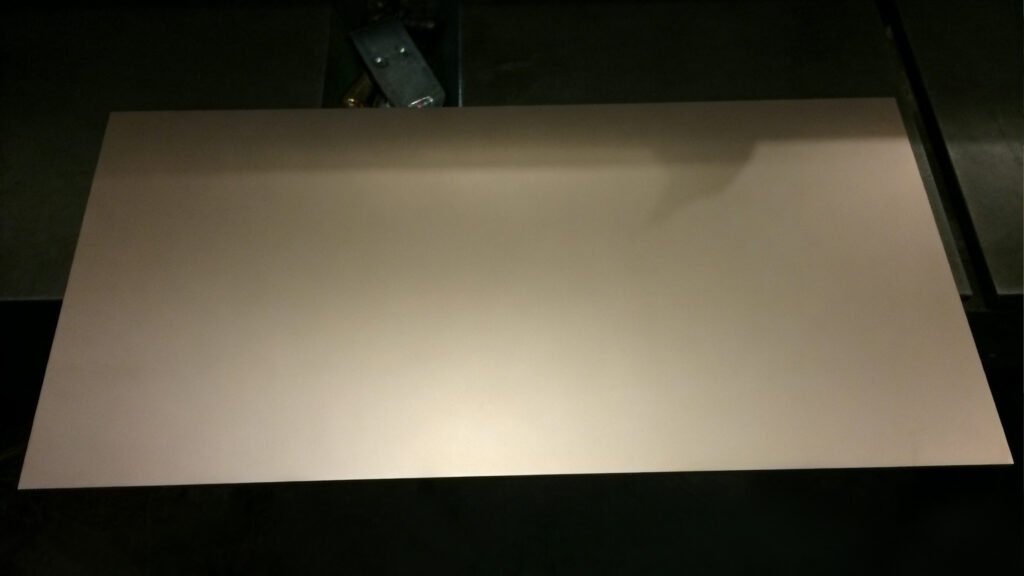

The material is typically supplied with copper foil bonded to one side, making it suitable for single-sided circuit boards. Due to its structure, CEM-1 cannot be used effectively in multilayer or double-sided plated-through-hole (PTH) applications.
Key Properties of CEM-1
CEM-1 laminate offers a balanced set of properties that make it popular in specific PCB applications:
- Good Mechanical Strength: The glass fabric layer enhances rigidity and reduces the risk of cracking.
- Excellent Electrical Insulation: Suitable for low to medium frequency circuits.
- Smooth Surface Finish: Ensures better circuit patterning and solderability.
- Cost-Effective: Lower production cost compared to FR-4 materials.
- Flame Resistance: Typically meets UL94 V-0 standards.
- Easy Machining: CEM-1 is easier to punch and drill compared to full fiberglass materials.
- High Production Efficiency: Ideal for mass production of consumer electronics.
- Stable Performance: Maintains consistent quality under standard operating conditions.
- Reduced Tool Wear: Less abrasive than glass-heavy laminates, extending tool life.
Advantages of CEM-1 in PCB Manufacturing
Manufacturers often choose CEM-1 laminate for its processing advantages and affordability:
Common Applications of CEM-1
In LED lighting, for example, CEM-1 provides a reliable substrate for low-power designs, offering sufficient thermal and electrical performance without the higher cost of aluminum-based laminates.
CEM-1 laminate is widely used in industries where cost control and reliability are essential. Typical applications include:
- Household appliances
- Power supplies
- LED lighting boards
- Consumer electronics
- Simple control circuits
- CEM-1 vs. FR-1: CEM-1 offers better mechanical strength and moisture resistance.
- CEM-1 vs. FR-4: FR-4 provides superior thermal and electrical performance but at a higher cost.
- CEM-1 vs. CEM-3: CEM-3 supports double-sided PCBs, while CEM-1 is limited to single-sided applications.
CEM-1 vs. Other PCB Materials
When compared to other common PCB materials:
Choosing the right material depends on the complexity, budget, and performance requirements of your project.
Why Choose Credisyn for CEM-1 Laminate?
As a specialized manufacturer of rigid copper clad laminates, Credisyn provides high-quality CEM-1 materials tailored to global PCB manufacturers. With stable supply capacity, strict quality control, and export experience, Credisyn supports customers in achieving cost-efficient and reliable PCB production.
