What Is Aluminum PCB

In today’s electronics landscape, where devices are getting smaller, more powerful, and more densely packed, excessive heat buildup is the leading cause of premature electronic failure, reduced performance, and safety risks. For high-power designs, traditional FR-4 PCBs – with a thermal conductivity of just 0.3-0.5 W/m·K – act as a thermal barrier, unable to efficiently dissipate heat from high-power components. This is where aluminum PCBs deliver a game-changing solution. As a specialized mid-scale manufacturer of rigid copper clad laminates (CCL) – the core foundational material of all aluminum PCBs – Credisyn breaks down everything you need to know about aluminum PCBs, from their core structure and advantages to application-specific use cases and material selection best practices.

What Is Aluminum PCB?

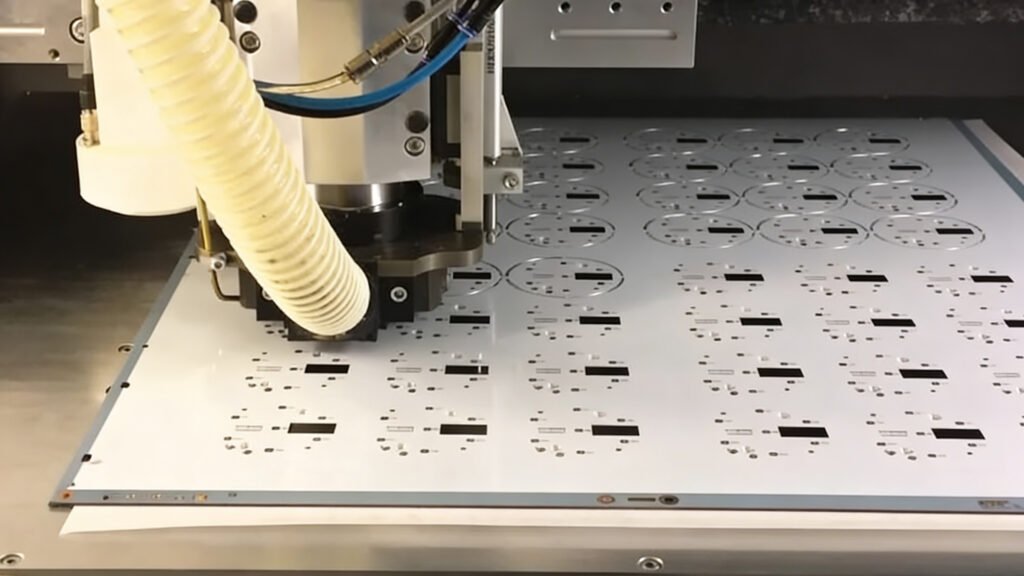

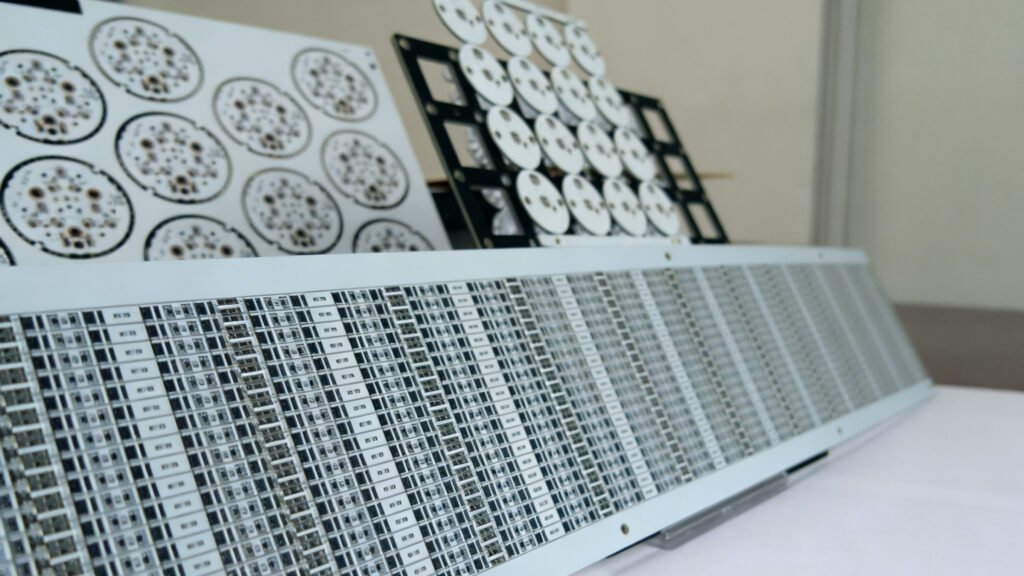

An aluminum PCB (also called aluminum core PCB, Al-PCB, or metal core PCB/MCPCB) is a specialized printed circuit board built on an aluminum-based rigid CCL substrate, engineered exclusively for superior thermal management. Unlike standard PCBs that use fiberglass-reinforced epoxy (FR-4) as the core substrate, aluminum PCBs replace the non-conductive FR-4 core with a thermally efficient aluminum metal base, paired with a high-performance dielectric insulation layer and conductive copper foil. This unique structure turns the PCB itself into a passive heat dissipation system, eliminating the need for bulky, costly additional cooling hardware in most high-power designs.

Core 3-Layer Structure of Aluminum PCBs

The performance of every aluminum PCB is defined by its aluminum CCL substrate, which consists of three non-negotiable layers:

Conductive Copper Foil Layer: The top layer, typically high-purity electrodeposited (ED) copper foil ranging from 1oz to 10oz in thickness, carries electrical current and forms circuit traces. Thicker copper foil is used for high-current power applications.

Thermally Conductive Dielectric Insulation Layer: The most critical, performance-defining layer, and the core of Credisyn’s aluminum CCL products. This high-performance epoxy resin layer delivers electrical insulation between the copper circuit and aluminum base, while providing exceptional thermal transfer. Credisyn’s proprietary formulations offer tunable thermal conductivity from 1.0 W/m·K to 5.0 W/m·K, with a glass transition temperature (Tg) up to 180°C for extreme high-temperature stability.

Aluminum Metal Core Base: The structural base layer, typically 6061 or 5052 aluminum alloy, acts as a large-area heat sink, spreading and dissipating heat transferred through the dielectric layer evenly across the board. It delivers exceptional dimensional stability, low thermal expansion, and lightweight mechanical support.

Unmatched Thermal Dissipation: Aluminum PCBs deliver 5-15x higher thermal conductivity than standard FR-4, reducing component operating temperatures by 10-30°C. This extends semiconductor lifespan by 3-5x, reduces luminous flux decay in LED systems, and eliminates thermal runaway risks.

Superior Dimensional & Thermal Stability: Aluminum has a far lower coefficient of thermal expansion (CTE) than FR-4, minimizing warping, delamination, and solder joint fatigue during repeated thermal cycling and high-temperature soldering.

Enhanced Electrical Safety & EMI Shielding: The solid aluminum base provides natural electromagnetic interference (EMI) shielding for sensitive circuits, while our high-performance dielectric layer delivers industry-leading dielectric strength for high-voltage applications, fully compliant with UL safety standards.

Simplified Design & Cost Optimization: Aluminum PCBs eliminate the need for bulky heat sinks, cooling fans, and complex thermal hardware, reducing product size, BOM cost, and assembly complexity for high-volume production.

Core Advantages of Aluminum PCBs vs. Traditional FR-4 PCBs

Aluminum PCBs offer transformative benefits for high-power electronic designs, addressing critical limitations of standard FR-4 substrates:

Key Applications of Aluminum PCBs

Aluminum PCBs are the gold standard for any high-power design where thermal management is critical. The most common use cases include:

High-Power LED Lighting: The largest application for aluminum PCBs, including LED street lights, flood lights, automotive LED headlights, commercial panel lights, and grow lights. Credisyn’s aluminum CCL is optimized for LED applications, delivering consistent thermal performance to minimize light decay and extend fixture lifespan.

Automotive & Electric Vehicle (EV) Electronics: Used in EV powertrain systems, on-board chargers, DC-DC converters, ADAS systems, and automotive lighting, with IATF 16949 compliant formulations available from Credisyn.

Industrial Power Electronics: Including power supply modules, frequency converters, motor drives, solar inverters, and renewable energy systems, where reliable heat dissipation is critical for long-term operation.

Consumer Electronics: High-power battery chargers, audio amplifiers, power banks, and LED display backlighting systems.

Critical Factors for Aluminum CCL Selection

The performance of your aluminum PCB starts with selecting the right aluminum CCL substrate. Key criteria include thermal conductivity matched to your component power rating, Tg temperature for operating environment stability, copper foil thickness for current carrying capacity, and full compliance with global standards including UL 94 V-0 flame retardancy, RoHS, REACH, and IATF 16949 for automotive applications.

Why Partner With Credisyn for Your Aluminum PCB CCL Needs

As a specialized mid-scale manufacturer focused on rigid CCL, Credisyn is the trusted partner for PCB manufacturers, electronics designers, and procurement teams worldwide. Unlike large-scale mass producers with rigid, one-size-fits-all product lines, we offer unmatched flexibility: custom dielectric formulations tailored to your exact thermal and electrical requirements, flexible order quantities (from small-batch prototyping to high-volume mass production), and dedicated end-to-end technical support from our in-house engineering team. Every batch of our aluminum CCL undergoes rigorous in-lab testing to ensure consistent batch-to-batch quality, with full traceability and compliance documentation provided for every order.

In summary, aluminum PCBs are the industry-leading thermal management solution for high-power electronic designs, with their performance fully defined by the quality of the underlying aluminum CCL substrate. Whether you are developing LED lighting, automotive electronics, industrial power systems, or consumer electronics, Credisyn has the rigid CCL expertise and tailored solutions to support your project’s success. Contact our team today to learn more about our aluminum PCB CCL products or request a custom quote.
