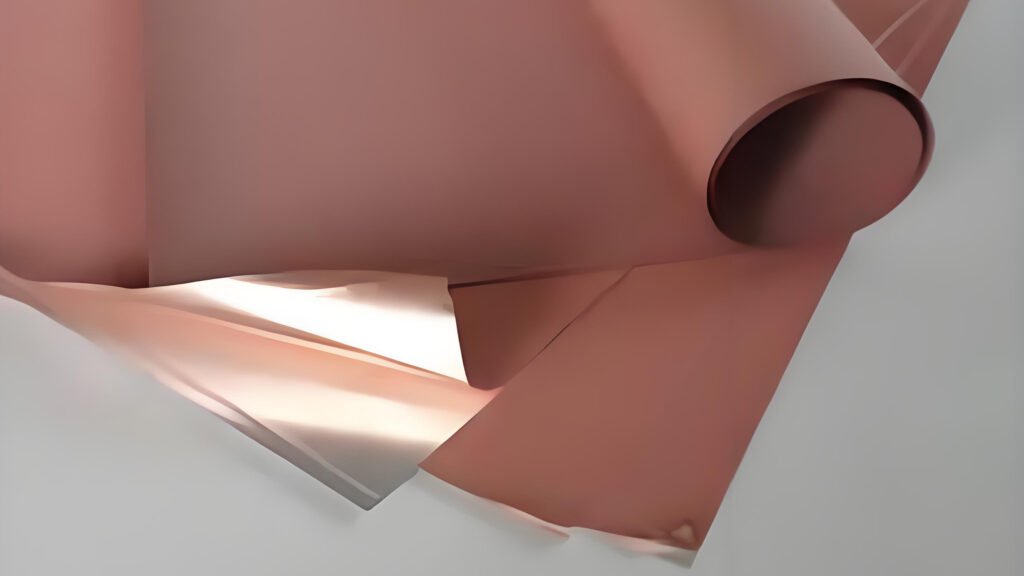

Types of Copper Foil for PCB

The performance, reliability, and manufacturing yield of printed circuit boards (PCBs) and rigid copper clad laminates (CCL) hinge on one underrated core component: copper foil. As the primary conductive and thermal transfer layer in every PCB, copper foil directly dictates electrical conductivity, signal integrity, heat dissipation, solder joint stability, and long-term delamination resistance. For PCB engineers, manufacturers, and procurement teams, mastering the types of copper foil for PCB is critical to avoiding costly reworks, yield losses, and premature product failures. As a specialized mid-scale manufacturer of premium rigid CCL, Credisyn delivers this application-focused guide to copper foil variants, core properties, use cases, and selection best practices, leveraging our deep expertise in CCL production and material optimization.

The Critical Role of Copper Foil in PCB & CCL Manufacturing

Copper foil is an indispensable raw material for rigid CCL, bonded to the top and bottom of fiberglass-reinforced epoxy substrates to form the base of PCB fabrication. Beyond carrying electrical current, it acts as a high-efficiency thermal pathway to draw heat away from high-power components, while its bonding strength with resin directly defines the CCL’s peel strength, thermal shock resistance, and dimensional stability. Even minor copper foil inconsistencies or misalignment with application needs can reduce PCB yield by 15-20% and cut product lifespan in half.

Main Types of Copper Foil for PCB

Below are the industry-standard copper foil types for PCB and CCL, with clear breakdowns of manufacturing, properties, and ideal applications:

1. Electrodeposited (ED) Copper Foil

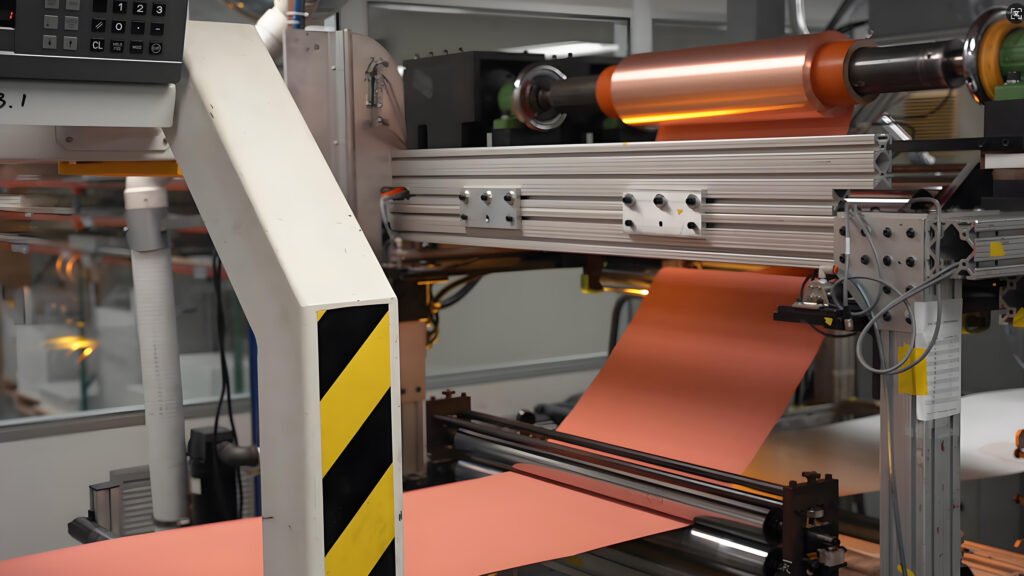

Accounting for over 90% of global PCB copper foil usage, ED copper foil is the universal standard for rigid CCL manufacturing. It is produced via electrochemical deposition, where high-purity copper is deposited onto a rotating cathode drum from a copper sulfate electrolyte, then treated to enhance adhesion and corrosion resistance.

Core advantages: Excellent thickness uniformity, tunable surface roughness, high tensile strength, cost-effectiveness, and superior bonding with epoxy substrates. It is available in standard profile (STD), low profile (LP), and very low profile (VLP) grades for specialized needs.

Ideal applications: General-purpose PCBs, consumer electronics, LED lighting, industrial controls, automotive electronics, and nearly all rigid CCL products. All Credisyn rigid CCL lines use premium ED copper foil as standard, with customizable roughness, thickness, and treatments to match your application.

2. Rolled Annealed (RA) Copper Foil

RA copper foil is manufactured via mechanical rolling: high-purity copper ingots are repeatedly cold-rolled to ultra-thin gauges, then annealed to restore ductility and relieve internal stress.

Core advantages: Exceptional flex fatigue resistance, ultra-smooth surface finish, superior electrical conductivity, and minimal high-frequency signal loss. Its uniform grain structure delivers consistent performance under repeated bending, unlike ED foil.

Ideal applications: Flexible PCBs, high-frequency high-speed rigid PCBs, aerospace electronics, wearable devices, and high-reliability applications requiring repeated flexing or ultra-low signal loss.

3. Specialized High-Performance Copper Foil

For demanding niche applications, specialized variants are engineered to meet specific performance requirements:

High-Frequency Low-Profile Foil: VLP/ultra-low profile (ULP) ED foil with a smooth surface, minimizing skin effect and signal loss for 5G/6G infrastructure, data centers, and high-speed communication PCBs.

High-Thermal Conductivity Foil: Optimized for high-power use, paired with Credisyn’s high thermal conductivity CCL to boost heat dissipation for LED lighting, power supplies, and EV powertrain systems.

Automotive-Grade High-Temperature Foil: Enhanced oxidation resistance and thermal stability for under-hood automotive electronics, meeting IATF 16949 standards for extreme thermal cycling.

Eco-Friendly Compliant Foil: Fully RoHS, REACH, and UL 94 V-0 compliant, with halogen-free treatments to meet global environmental regulations.

Key Parameters for Copper Foil Selection

To match the right foil to your project, prioritize these critical metrics:

Thickness: Most commonly measured in ounces (oz), with 1oz (35μm) as the standard for general PCBs, 2oz+ for high-power current-carrying applications.

Surface Roughness (Rz): Higher roughness improves resin adhesion, while lower roughness reduces high-frequency signal loss.

Peel Strength: The force required to separate foil from the CCL substrate, a non-negotiable metric for delamination resistance.

Tensile Strength & Elongation: Critical for withstanding PCB fabrication processes and thermal cycling in end-use.

Global Compliance Certifications: Ensures alignment with regional regulatory requirements for your target market.

Why Partner with Credisyn

As a specialized mid-scale rigid CCL manufacturer, Credisyn offers unmatched flexibility and quality control vs. large mass producers. We rigorously source and test every batch of copper foil, ensuring full compatibility with our CCL resin formulations for optimal peel strength, thermal performance, and manufacturing yield. We deliver fully customizable CCL solutions, with tailored copper foil type, thickness, and treatment to match your exact project needs, supporting both small-batch prototyping and high-volume mass production. All our products come with full batch traceability and global compliance documentation, with dedicated technical support to guide your material selection.

Mastering the types of copper foil for PCB is the first step to building reliable, high-performance electronic products. Whether you are developing consumer electronics, high-power LED lighting, automotive systems, or high-speed communication devices, the right copper foil paired with premium rigid CCL is the foundation of your product’s success. Contact Credisyn today to learn more about our optimized CCL solutions, or to get personalized guidance for your PCB material selection.
