PCB Material Selection Guide

Selecting the right PCB material is the most critical foundational decision in electronic product design, directly defining your device’s performance, service lifespan, safety compliance, manufacturing yield, and total cost of ownership. A wrong material choice leads to over 50% of premature electronic failures, costly design reworks, production delays, and non-compliance with global industry standards – risks that can derail even the most well-engineered product. This comprehensive PCB Material Selection Guide, brought to you by Credisyn – a specialized mid-scale manufacturer of premium rigid copper clad laminates (CCL), the core substrate of nearly all PCBs – breaks down critical selection criteria, application-specific recommendations, and common pitfalls to avoid, empowering PCB design engineers, manufacturers, and procurement teams to make informed, cost-effective material choices.

Why PCB Material Selection Is Make-or-Break for Your Project

Your PCB material is not just a structural base; it is the backbone of your device’s electrical and thermal performance. Poor material selection triggers a cascade of issues: excessive heat buildup that cuts semiconductor lifespan in half with every 10°C temperature rise, solder joint fatigue and PCB warping from thermal cycling, signal loss in high-speed designs, and failure to meet UL, RoHS, or automotive safety standards. Even minor material inconsistencies can reduce manufacturing yield by 15-20%, driving up production costs and delaying time-to-market. Conversely, optimal material selection ensures long-term reliability, simplifies manufacturing, reduces total lifecycle costs, and gives your product a competitive edge in global markets.

Critical Factors for PCB Material Selection

To choose the right material for your project, prioritize these non-negotiable criteria, aligned with your design’s core requirements:

Thermal Performance:

The single most critical factor for most modern designs. Key metrics include thermal conductivity (the material’s ability to transfer heat away from components) and glass transition temperature (Tg, the temperature at which the material loses structural stability). Standard FR-4 offers only 0.3-0.5 W/m·K thermal conductivity, while Credisyn’s rigid CCL delivers tunable thermal conductivity from 1.0 W/m·K to 5.0 W/m·K, with Tg up to 180°C for high-temperature applications.

Electrical Properties:

For high-speed, high-voltage, or high-frequency designs, focus on dielectric constant (Dk), dielectric loss (Df), and dielectric strength. Consistent Dk/Df values ensure minimal signal loss and interference, while high dielectric strength guarantees reliable insulation in high-voltage systems.

Mechanical & Chemical Stability:

Evaluate dimensional stability under thermal cycling, copper foil peel strength (a key metric for reliable bonding), and resistance to moisture, chemicals, and UV exposure. These properties directly impact your PCB’s durability in harsh operating environments.

Global Regulatory Compliance:

Ensure your material meets mandatory global standards: UL 94 V-0 flame retardancy, RoHS and REACH for hazardous substance restrictions, IATF 16949 for automotive applications, and IPC specifications for PCB materials. All Credisyn CCL products are fully certified to these global standards, with full batch traceability.

Manufacturing Compatibility:

Verify that the material is compatible with your PCB fabrication process, including etching, drilling, soldering, and assembly. Our rigid CCL is engineered for excellent processability, supporting high-volume and prototype manufacturing alike.

Cost vs. Performance Balance:

Avoid over-specifying high-end materials for low-power designs (driving unnecessary costs) or under-specifying generic materials for high-reliability applications (creating failure risks).

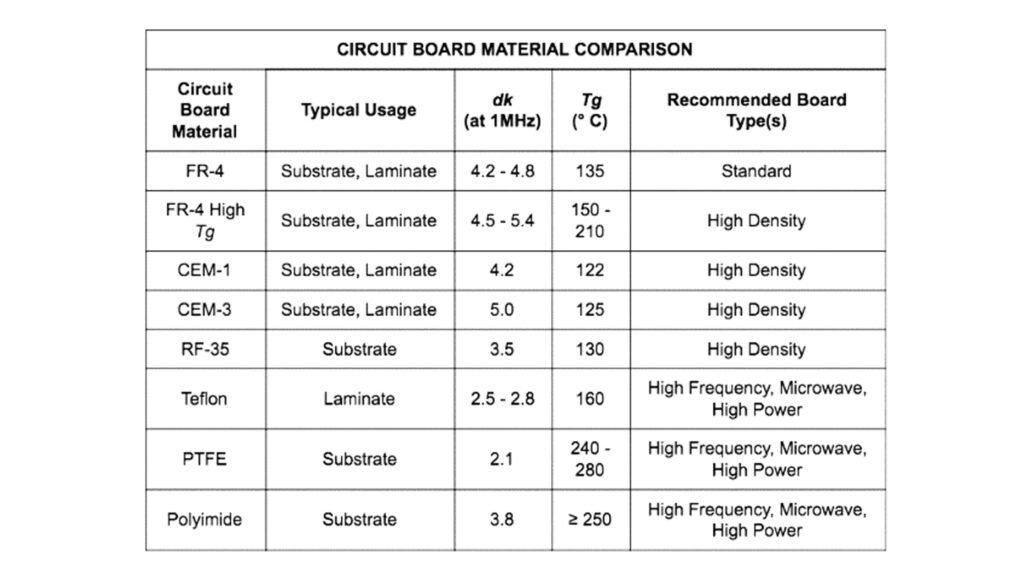

Application-Specific PCB Material Recommendations

he optimal material varies drastically by use case. Our PCB Material Selection Guide includes tailored recommendations for the most common applications:

Application-Specific PCB Material Recommendations

he optimal material varies drastically by use case. Our PCB Material Selection Guide includes tailored recommendations for the most common applications:

Consumer Electronics & Low-Power Devices:

Standard FR-4 CCL offers a cost-effective, reliable solution for low-heat, low-frequency designs like remote controls, small home appliances, and basic consumer gadgets.

LED Lighting & Mid-Power Industrial Controls:

1.0-2.0 W/m·K medium thermal conductivity CCL balances cost and heat dissipation, ensuring consistent light output and long lifespan for LED panels, downlights, and industrial control systems.

Automotive Electronics & EV Systems:

Automotive-grade high-Tg (150-180°C) CCL, compliant with IATF 16949, delivers exceptional thermal cycling resistance and dimensional stability for ADAS, EV powertrains, in-vehicle electronics, and lighting systems.

High-Power Outdoor Equipment & Power Supplies:

3.0-5.0 W/m·K high thermal conductivity CCL efficiently dissipates concentrated heat, with enhanced weather and chemical resistance for street lights, renewable energy systems, and industrial power supplies.

High-Speed 5G & Communication Devices:

Low Dk/Df high-frequency CCL ensures minimal signal loss and stable performance for 5G base stations, data centers, and high-speed communication terminals.

Common PCB Material Selection Mistakes to Avoid

Even experienced engineers fall prey to these common pitfalls:

Prioritizing upfront cost over long-term reliability: Generic low-cost materials often lead to higher failure rates and warranty costs over the product lifecycle.

Over-specifying materials: Choosing premium high-end CCL for low-power designs adds unnecessary cost without performance benefits.

Ignoring manufacturing process compatibility: A material that performs well in lab testing may fail in high-volume production if not optimized for standard PCB fabrication processes.

Overlooking regional regulatory requirements: Materials must meet the compliance standards of your target market to avoid costly customs delays or product recalls.

Why Partner with Credisyn for Your PCB Material Needs

As a specialized mid-scale rigid CCL manufacturer, Credisyn fills a critical gap in the global PCB material market. Unlike large-scale manufacturers with rigid, one-size-fits-all product lines, we offer unmatched flexibility: custom resin formulations tailored to your unique design requirements, flexible order quantities (from small-batch prototyping to high-volume mass production), and dedicated end-to-end technical support from our in-house engineering team. Every batch of our CCL undergoes rigorous in-lab testing to ensure consistent, batch-to-batch quality, with full compliance documentation provided for every order.

This PCB Material Selection Guide provides the core framework to choose the optimal PCB substrate for your project, but every design has unique requirements. Whether you are developing consumer electronics, automotive systems, LED lighting, or high-power industrial equipment, Credisyn has the rigid CCL solutions and technical expertise to support your success. Contact our team today for personalized material selection guidance or a custom quote for your project.
