Credisyn Achievements: International Quality Standards, Certifications, and the Pursuit of Zero Defects in CCL Manufacturing

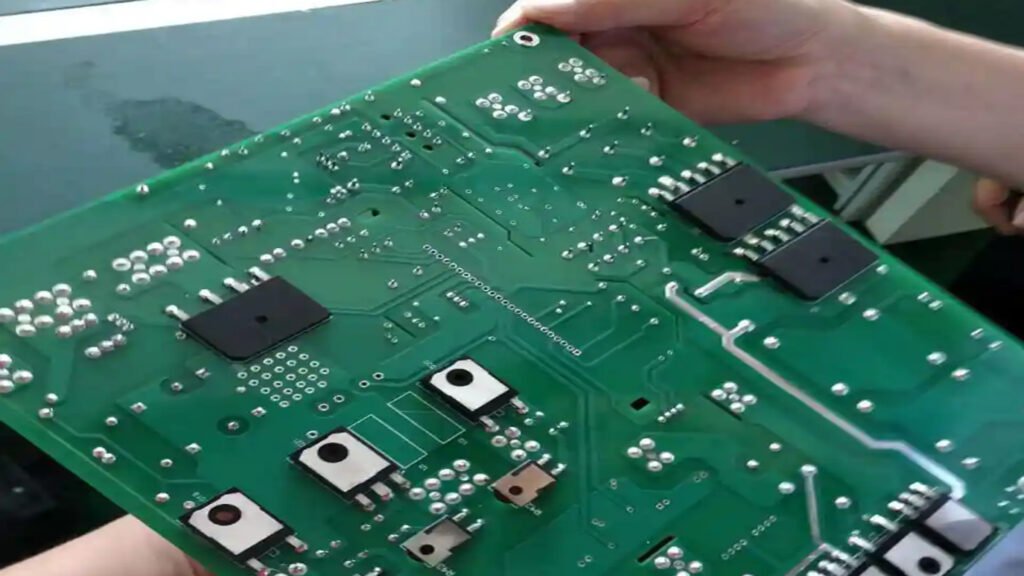

1. The Foundation: ISO 9001:2015 Quality Management System

Beyond the Checkbox: The PDCA Cycle

• Plan: Our engineering teams utilize Advanced Product Quality Planning (APQP) to define the critical parameters for every new laminate formulation, whether it is a High-Tg FR-4 or a specialized Ceramic-filled Aluminum base.
• Do: Manufacturing is executed in our Class 1000 Clean Rooms, where environmental variables (humidity, temperature, particle count) are controlled to within ±1% tolerances.
• Check: We utilize real-time Statistical Process Control (SPC) to monitor key characteristics like dielectric thickness and peel strength. If a data point drifts toward a control limit, the line pauses automatically—long before a defect is produced.
• Act: Root Cause Analysis (RCA) is performed on any deviation, updating our Standard Operating Procedures (SOPs) to prevent recurrence.

Full Traceability

1. The specific batch of copper foil and resin used.
2. The press cycle temperature and pressure logs.
3. The names of the operators on shift.
4. The lab test results for that specific lot.

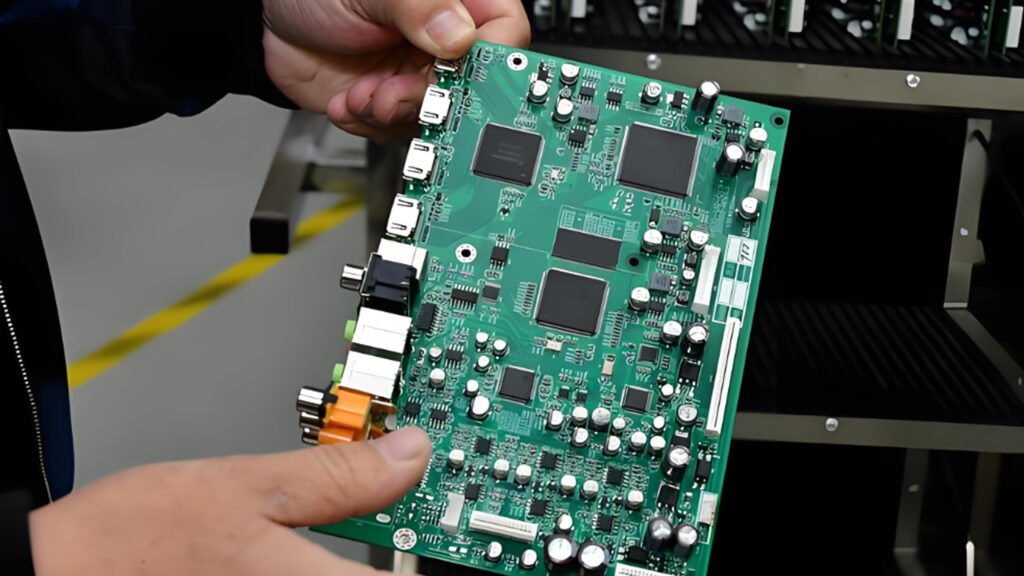

2. The Automotive Gold Standard: IATF 16949

The Five Core Tools of IATF 16949 at Credisyn

1. APQP (Advanced Product Quality Planning): Before we mix a single gram of resin for an automotive client, we map out the entire production lifecycle to ensure feasibility and capacity.
2. PPAP (Production Part Approval Process): We do not just ship samples; we provide a “Level 3 PPAP” package. This includes 18 distinct documents proving that our production process is stable and capable of meeting the customer’s engineering design record consistently.
3. FMEA (Failure Mode and Effects Analysis): We anticipate failure. Our engineers conduct Process FMEAs to ask, “What could go wrong?” (e.g., uneven resin distribution). We then implement controls (e.g., automated beta-ray thickness gauges) to make that failure mode impossible.
4. MSA (Measurement Systems Analysis): We certify our testing equipment. We perform Gage R&R (Repeatability and Reproducibility) studies to prove that our lab instruments read the same results regardless of the operator.
5. SPC (Statistical Process Control): For critical automotive characteristics like Breakdown Voltage and Thermal Conductivity, we maintain a Cpk (Process Capability Index) of >1.67, ensuring a defect rate of less than 1 part per million.

3. Safety and Flammability: UL Certification (Underwriters Laboratories)

The “Yellow Card” – Validated Safety

• Flammability V-0: The highest standard for vertical burning. When a flame is applied to our laminate, it must self-extinguish within 10 seconds, and it must not drip flaming particles. This is achieved through our proprietary halogen-free and brominated flame retardant chemistries.
• MOT / RTI (Maximum Operating Temperature / Relative Thermal Index): This rating determines the long-term thermal aging of the material. Credisyn materials are certified for electrical and mechanical integrity at temperatures ranging from 130°C to 150°C+, ensuring they do not degrade over a product’s 10-20 year lifespan.
• DSR (Direct Support of Current Carrying Parts): Our laminates are certified to physically support high-voltage components without losing structural integrity or electrical isolation.

4. Environmental Responsibility: QC 080000, RoHS, and REACH

IECQ QC 080000: Hazardous Substance Process Management

• RoHS 3 (Restriction of Hazardous Substances): We certify that our laminates contain no Lead (Pb), Mercury, Cadmium, Hexavalent Chromium, PBBs, or PBDEs above the threshold limits (usually <1000ppm or <100ppm).
• REACH (Registration, Evaluation, Authorisation and Restriction of Chemicals): We continuously monitor the EU’s “Candidate List of Substances of Very High Concern” (SVHC). As of 2024, we verify compliance with the latest list of 235+ substances.
• Halogen-Free (HF): For our green product lines (CS-HF Series), we guarantee Chlorine (Cl) and Bromine (Br) levels are below 900ppm each, and combined total halogens are below 1500ppm, tested via Ion Chromatography.

5. Industry Alignment: IPC-4101 Compliance

Mastering the “Slash Sheets”

• IPC-4101 /21: Standard FR-4 (Tg >110°C).
• IPC-4101 /26: High-Tg FR-4 (Tg >170°C) with inorganic fillers, suitable for lead-free assembly.
• IPC-4101 /126: Halogen-Free, High-Tg, Inorganic Fillers.
• IPC-4101 /101: High thermal conductivity metal-base materials.

6. The “Invisible” Quality: In-Process Controls & Lab Testing

Key Laboratory Capabilities

1. DSC (Differential Scanning Calorimetry): Measures the Glass Transition Temperature (Tg) and Cure Factor (Delta H). This ensures the resin is fully cured and stable.
2. TMA (Thermomechanical Analysis): Measures the Coefficient of Thermal Expansion (CTE), specifically in the Z-axis. This is critical for preventing barrel cracks in plated through-holes during soldering.
3. TGA (Thermogravimetric Analysis): Measures the Decomposition Temperature (Td). We ensure our High-Tg materials do not lose mass until >340°C.
4. High-Voltage Breakdown Tester: For our EV and Industrial clients, we test dielectric breakdown strength up to 6kV AC/DC to ensure insulation reliability.
5. PCT (Pressure Cooker Test): We subject samples to 121°C, 100% humidity, and 2atm pressure to simulate extreme moisture absorption.

Automated Optical Inspection (AOI)

• Pits and Dents
• Resin Spots
• Scratches
• Oxidation
• Wrinkles

7. Case Study: Quality in Action – The “Black Pad” Prevention

1. Hypothesis: Excessive surface roughness or chemical contamination in the copper foil of the CCL could be accelerating the corrosion.
2. Analysis: We utilized Scanning Electron Microscopy (SEM) and Energy Dispersive X-Ray Spectroscopy (EDS) in our lab.
3. Finding: The competitor’s laminate they were using had inconsistent curing, leading to resin residue on the copper that interfered with the plating process.
4. The Solution: We replaced the material with Credisyn CS-HighSpeed series. Our stricter controls on the “Gel Time” and “Resin Flow” during the B-Stage (Prepreg) production ensured a perfectly clean copper surface after etching.

8. Conclusion: The Credisyn Quality Promise

Frequently Asked Questions (FAQ)

Glossary of Quality Terms

• PPAP (Production Part Approval Process): A standardized process in the automotive and aerospace industries that ensures a supplier can consistently manufacture a product to meet requirements.
• V-0: A UL flammability rating indicating that burning stops within 10 seconds on a vertical specimen; drips of particles allowed as long as they are not inflamed.
• RoHS (Restriction of Hazardous Substances): EU legislation restricting the use of hazardous substances in electrical and electronic equipment.
• Cpk (Process Capability Index): A statistical tool used to measure the ability of a process to produce output within specification limits.
• FOD (Foreign Object Debris): Any particle (dust, hair, fiber) that shouldn’t be in the product. In CCL, FOD causes short circuits.
• IPC (Association Connecting Electronics Industries): The trade association that sets the standards for the PCB and electronics assembly requirements.
